Online SLAM with Extended Kalman Filter

The SLAM problem is one of the most fundamental problems in robotics. SLAM problems arise when both map of the environment and the pose of robot are not available. Robots are only given the measurement \(z_{1:t}\) and controls \(u_{1:t}\). In SLAM problem, the robot should learn a map of the environment and simultaneously estimate its pose in the environment.

There are two main forms of SLAM problem:

  1. Full SLAM problem: robot should computes a posterior over the entire path along with the map, i.e., \(P(x_{1:t}, m|z_{1:t},u_{1:t})\).

  2. Online SLAM problem: robot computes a posterior over the pose in the current time step along with the map, i.e., \(P(x_t, m|z_{1:t},u_{1:t})\).

In this project, we implement the EKF SLAM algorithm for the online SLAM problem. The map in this problem is the feature-based map, which is composed of point landmarks. The data set[1] contains the odometry information, the range-bearing sensor readings and the correspondence in each time step. Using EKF, the robot estimates the current pose of robot (illustrated by the red covariance ellipse and bar) and the positions of all landmarks (illustrated by the blue covariance ellipse). The gray lines show the observed landmarks in the current time step.

Extended Kalman Filter Algorithm for the Online SLAM Problem

EKF Overview

Similar to EKF for localization, the algorithm include two steps: predication by the motion model and correction by the sensor model. Unlike EKF for localization problem, the state includes the position of all landmarks in addition to the robot’s pose, i.e., \((x,y,\theta, m_{1,x}, m_{1,y}, ..., m_{n,x}, m_{n,y})\) where \(n\) is the number of landmarks.

Therefore the nonlinear motion function \(g(u_t, x_{t-1})\), obvervation function \(h(x_t)\), and the corresponding Jacobian \(G_t\) and \(H_t\) should be changed accordingly.

The Extended Kalman Filter for Localization


More specifically for the odometry motion model, the prediction step is

\[\bar{\mu}_t = g(u_t, \mu_{t-1}) = \mu_{t-1} + F^T_{x} \begin{bmatrix} \delta_{tran} \cos(\mu_{\theta_{t-1,\theta}}+\delta_{rot1}) \\ \delta_{tran} \sin(\mu_{\theta_{t-1,\theta}}+\delta_{rot1}) \\ \delta_{rot1}+ \delta_{rot2} \end{bmatrix}\]

where \(\mu_{t-1}\in \mathbb{R}^{(3+2n)\times 1}, F_x \in \mathbb{R}^{3\times (3+2n)}\)

\[\mu_{t-1} = \begin{bmatrix} \mu_{t-1, x} \\ \mu_{t-1, y} \\ \mu_{t-1, \theta} \\ \mu_{m_1,x} \\ \vdots \\ \mu_{m_n,y} \end{bmatrix}, \ \ F_x = \begin{bmatrix} 1 & 0 & 0 & \cdots & 0 \\ 0 & 1 & 0 & \cdots & 0 \\ 0 & 0 & 1 & \cdots & 0 \\ \end{bmatrix}\]

Note that the estimate of positions of landmarks do not change due to the control.

The Jacobian of \(g(u_t, x_{t-1})\) with respect to \(x_{t-1}\) at \(\mu_{t-1}\) is

\[G_t = \begin{bmatrix} G_t^x & 0 \\ 0 & I_{2n\times 2n} \end{bmatrix}, \ \ G_t^x = \begin{bmatrix} 1 & 0 & -\delta_{tran} \sin(\mu_{\theta_{t-1}}+\delta_{rot1}) \\ 0 & 1 & \delta_{tran} \cos(\mu_{\theta_{t-1}}+\delta_{rot1}) \\ 0 & 0 & 1 \end{bmatrix}\]

For the range-bearing sensor model, consider the range-bearing sensor model for each landmark \(i\) (which returns the expected sensor reading),

\[\hat{z}_t^i = h^i(\bar{\mu}_t) = \begin{bmatrix} \sqrt{q} \\ \mathrm{atan2}(\delta_y, \delta_x) - \bar{\mu}_{t,\theta} \end{bmatrix}\]

where \(\delta = \begin{bmatrix} \delta_x \\ \delta_y \end{bmatrix} = \begin{bmatrix} \bar{\mu}_{m_j,x} - \bar{\mu}_{t,x} \\ \bar{\mu}_{m_j,y} - \bar{\mu}_{t,y} \end{bmatrix}, q = \delta^T \delta\) and \(j\) is the correspondence of the measurement \(i\).

The Jacobian of \(h^i(x_t)\) at \(\bar{\mu}_t\) is

\[H_t^i = \frac{1}{q} \begin{bmatrix} -\sqrt{q} \delta_x & -\sqrt{q} \delta_x & 0 & \sqrt{q} \delta_x & \sqrt{q} \delta_y \\ \delta_y & -\delta_x & -q & -\delta_y & \delta_x \end{bmatrix} F_{x,j}, \ H_t^i \in \mathbb{R}^{2\times (3+2n)}\]

where \(F_{x,j} = \begin{bmatrix} 1 & 0 & 0 & 0 & \cdots & 0 & 0 & \cdots & 0 \\ 0 & 1 & 0 & 0 & \cdots & 0 & 0 & \cdots & 0 \\ 0 & 0 & 1 & 0 & \cdots & 0 & 0 & \cdots & 0 \\ 0 & 0 & 0 & 0 & \cdots & 1 & 0 & \cdots & 0 \\ 0 & 0 & 0 & 0 & \cdots & 0 & 1 & \cdots & 0 \\ \end{bmatrix}, \ F_{x,j} \in \mathbb{R}^{5\times (3+2n)}\).

The non-zeros columns are at \(2j+2\) and \(2j+3\).

Now we can obtained the EKF algorithm for SLAM problem below by changing the motion function, observation function and the corresponding Jacobian in EKF for localization.

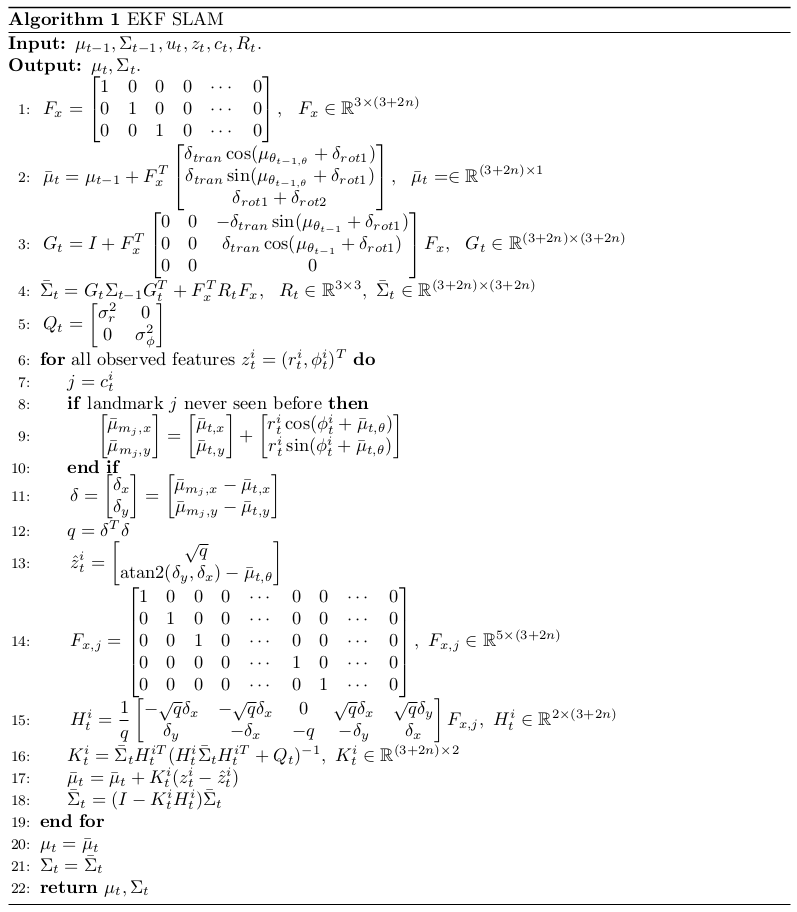

The Extended Kalman Filter for SLAM


Code Explanation

  1. [mu, sigma] = prediction_step(mu, sigma, u): Update the belief of the robot’s pose based on the motion model. Implement line 1 to 4 in EKF SLAM Algorithm.

  2. [mu, sigma, observedLandmarks] = correction_step(mu, sigma, z, observedLandmarks): Updates the belief of the robot’s pose and landmark positions according to the sensor model. Implement line 6 to 19 in EKF SLAM Algorithm.

References

  1. Robot Mapping
    University of Freiburg, WS 2013/14, http://ais.informatik.uni-freiburg.de/teaching/ws13/mapping/

  2. Probabilistic Robotics
    S. Thrun, W. Burgard, and D. Fox. MIT Press, Cambridge, Mass., (2005)
